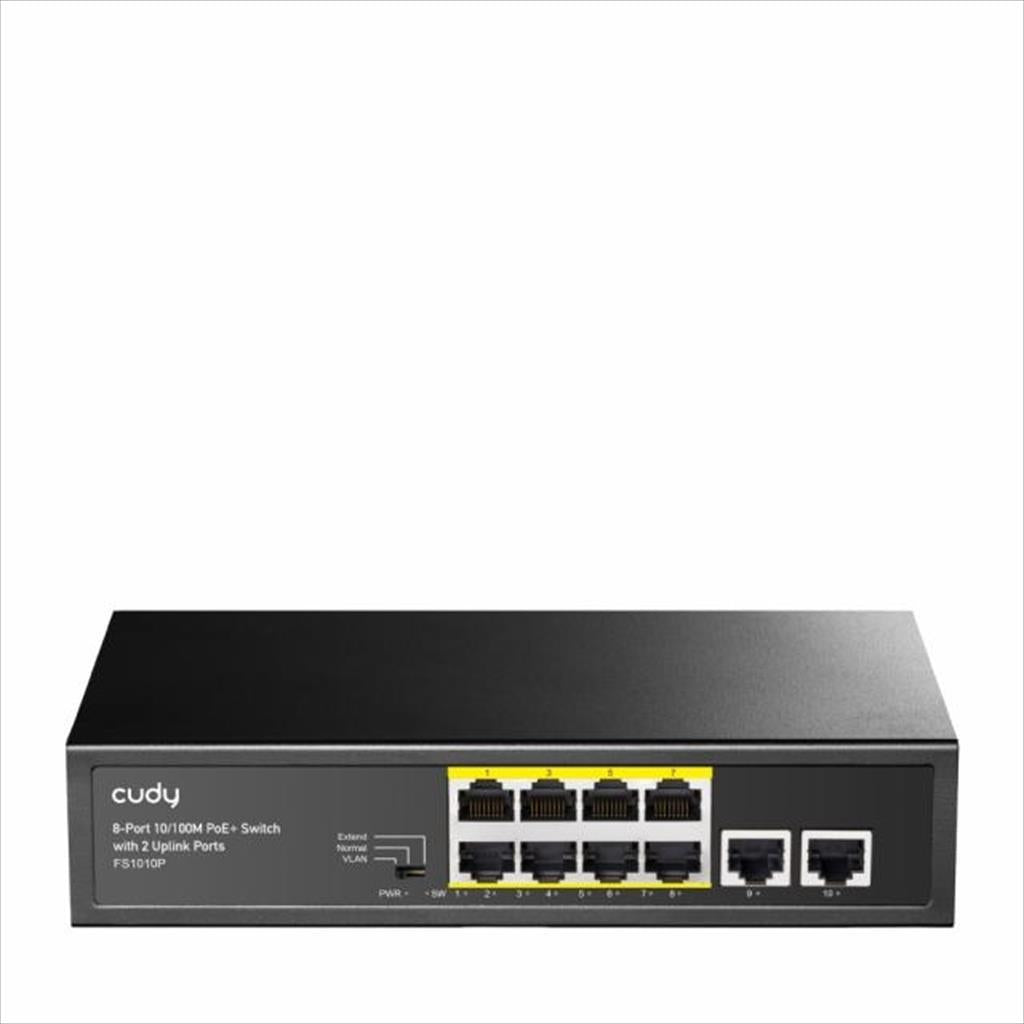

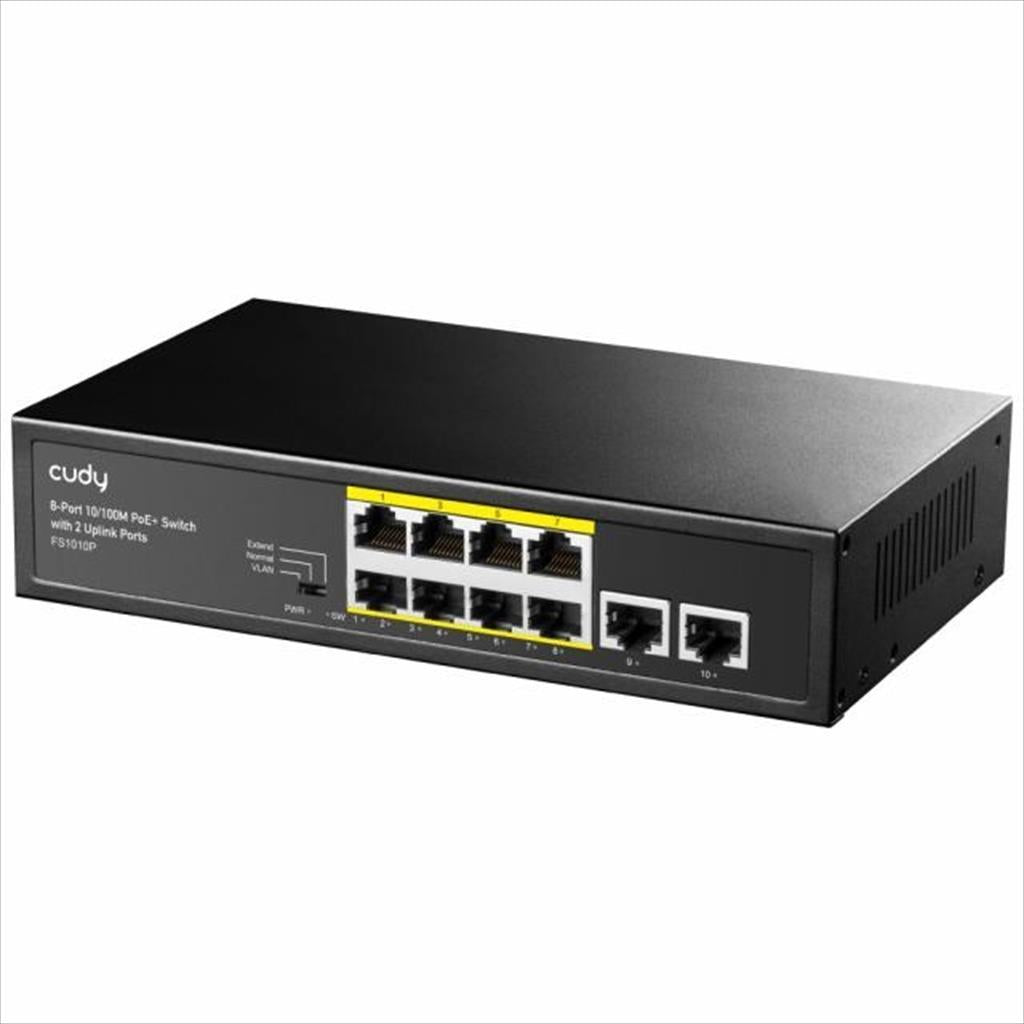

Model Name: CUDY FS1010P

Specification

• Standards Supported: IEEE802.3at and IEEE802.3af
• Output Power:
  • Total: 120W PoE
  • Maximum per PoE Port: Up to 32W
• Duplex Support:
  • Full Duplex
  • Half Duplex
• Additional Features:
  • VLAN support
  • CCTV function support
  • Panel indicators for monitoring working status and error analysis
  • Protection mechanism
• PoE Specifications:
  • PoE Standard: IEEE802.3af/at
  • Interface:
    • 10 x 10/100Mbps RJ45 ports
  • PoE Ports: 1-8
  • Indicators:
    • Power (PWR)
    • Link/Activity (LNK/ACT)
    • PoE status
  • Cables:
    • 10BASE-T: UTP category 3, 4, 5 cable (≤100m)
    • 100BASE-TX: UTP category 5, 5e cable (≤100m)
• Dimensions:
  • Size: 220 mm x 150 mm x 44 mm
