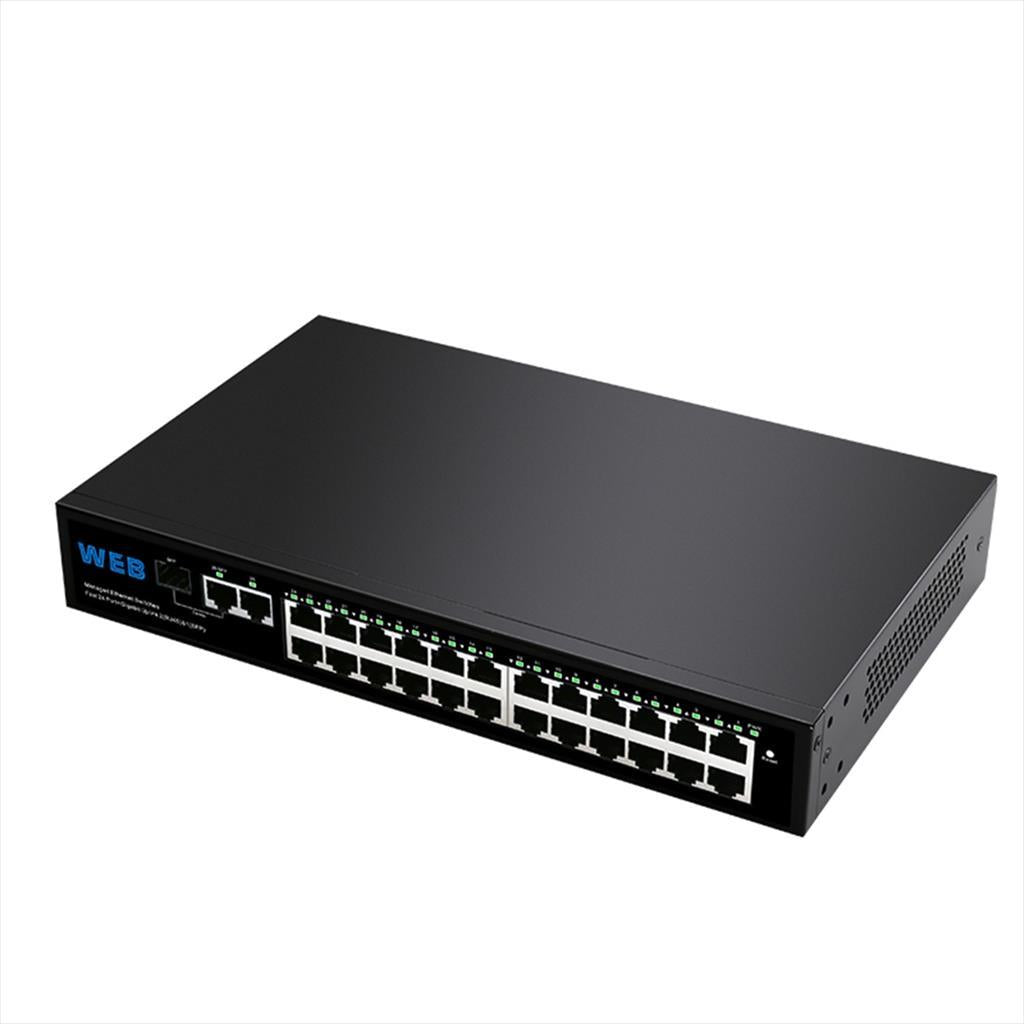

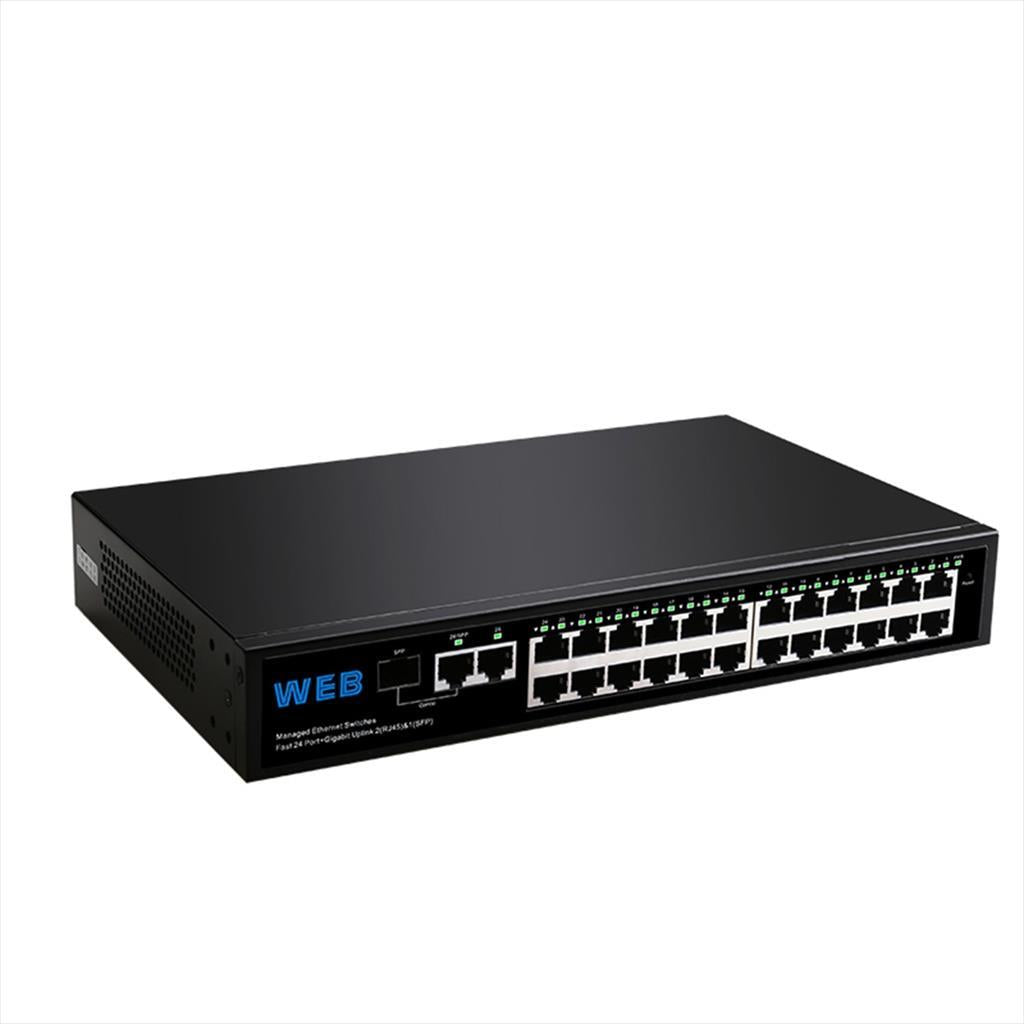

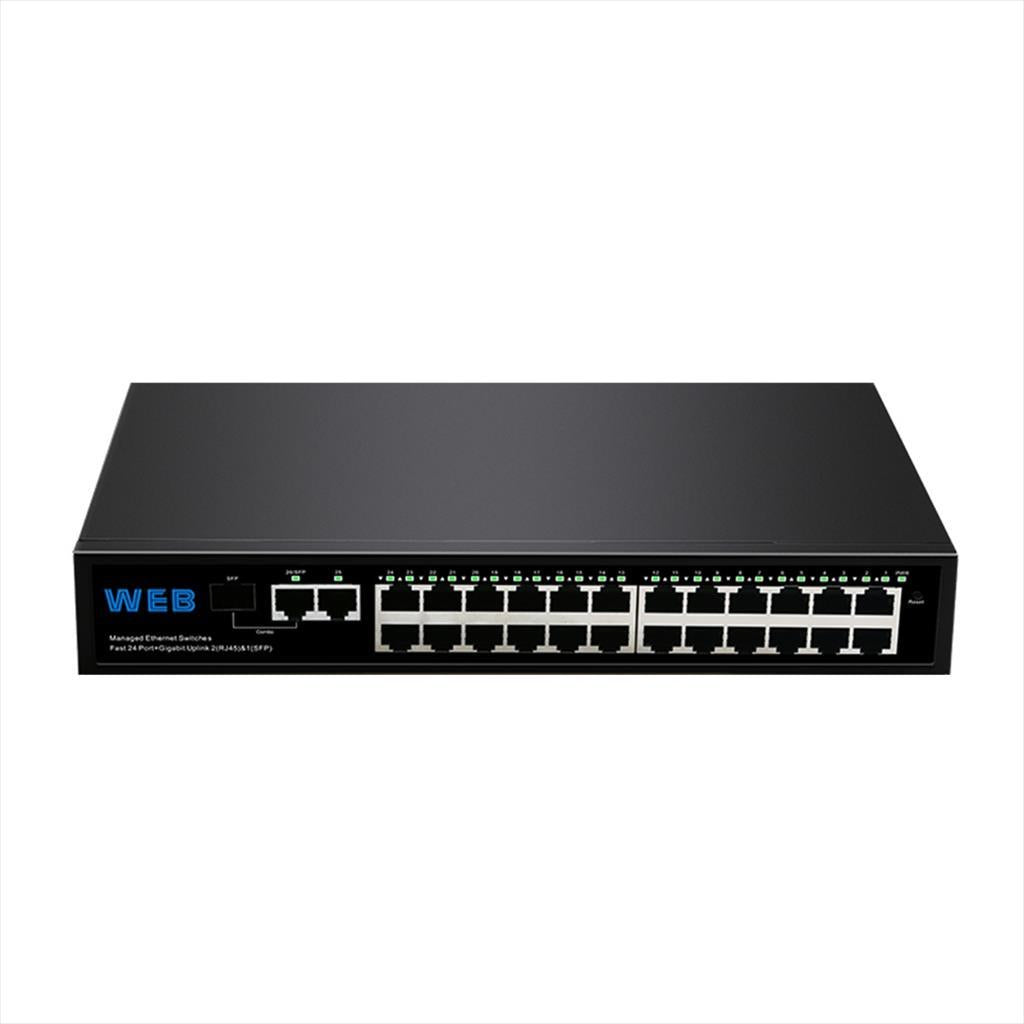

Model name: DIEWU TXE050

Specification :

• Chip: IP1829A+2*IP1001C+IP211
• Supported Standards and Protocols: IEEE802.3, IEEE802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az, IEEE802.1q, IEEE802.3ad, IEEE802.3p
• Interface:
  • 24x10/100Mbps adaptive RJ45 port (Auto MDI/MDIX)
  • 2x10/100/1000Mbps adaptive RJ45 port (Auto MDI/MDIX)
  • 1x1000Mbps SFP port
• Network Media:
  • 10Base-T: Category 3 or above UTP
  • 100Base-TX: Type 5 UTP
  • 1000Base-T: Category 5 or above UTP
  • 1000Base-X
• Transmission Method: Store and Forward
• MAC Address Capacity: 16K
• Exchange Capacity: 8.8Gbps
• Packet Forwarding Rate: 6.55Mpps
• Indicator Light:
  • Each-Power
  • Each Port-Link/Act
• Power Supply: AC 100-240V/50-60HZ
• Dimensions (LxWxH): 290*179*44mm
• Use Environment:
  • Working Temperature: 0℃～45℃
  • Storage Temperature: -40℃~70℃
  • Working Humidity: 10%~90% RH non-condensing
  • Storage Humidity: 5%~90% RH non-condensing
