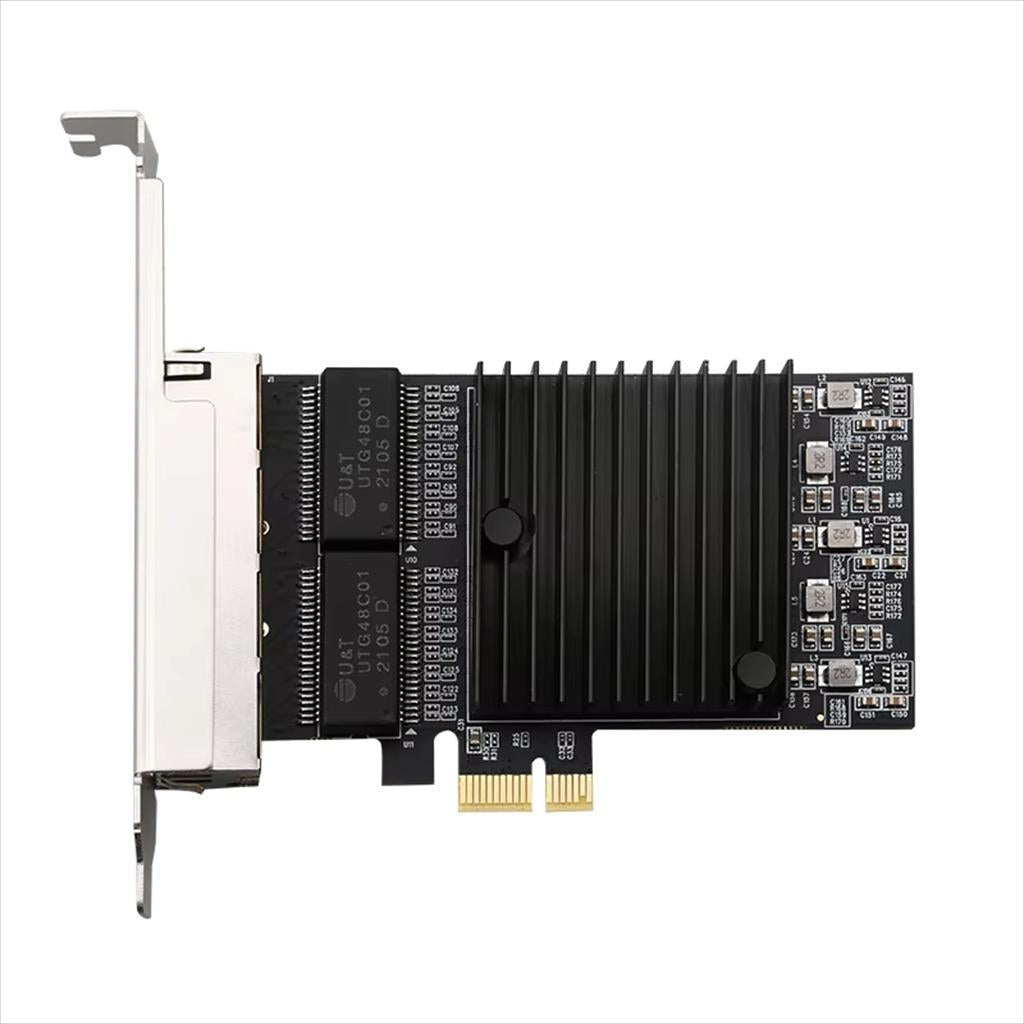

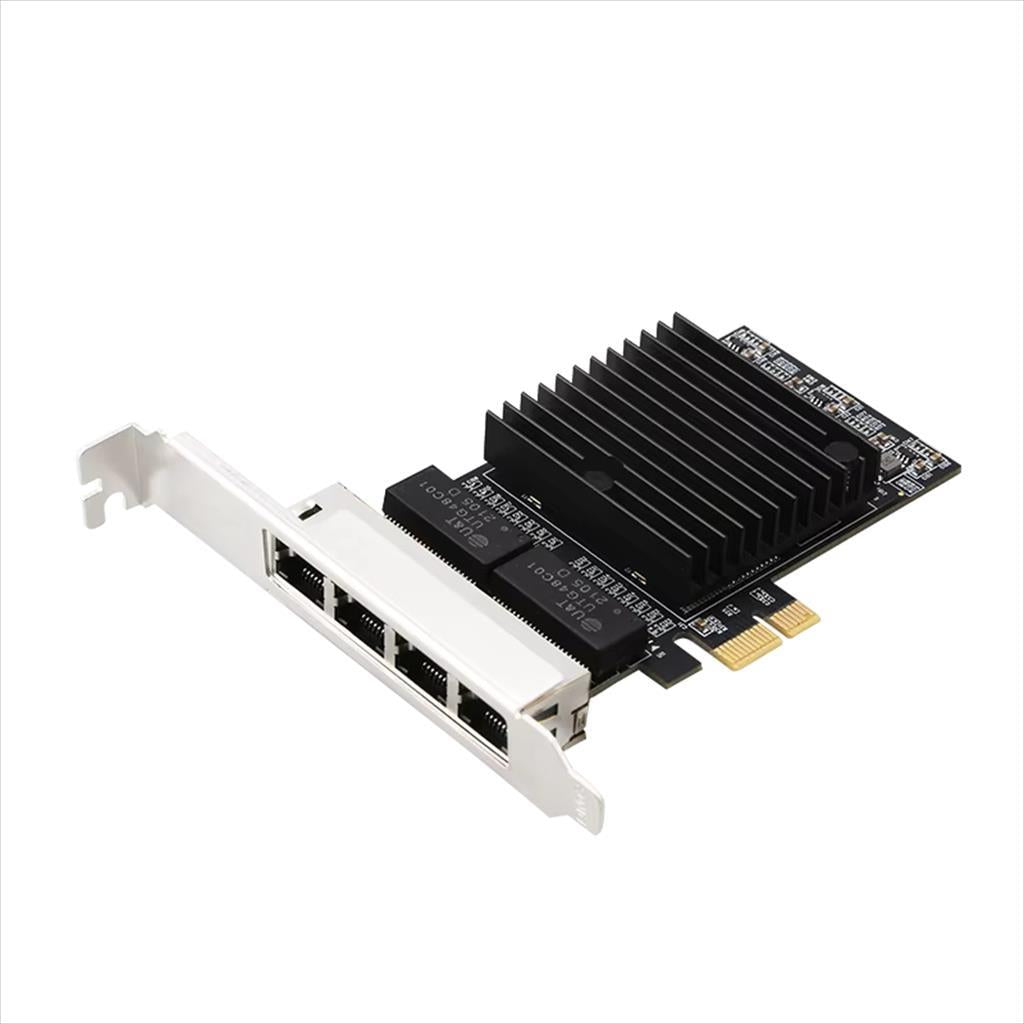

Model name: DIEWU TXA198

Specification :

• Chipset: Intel – 82571

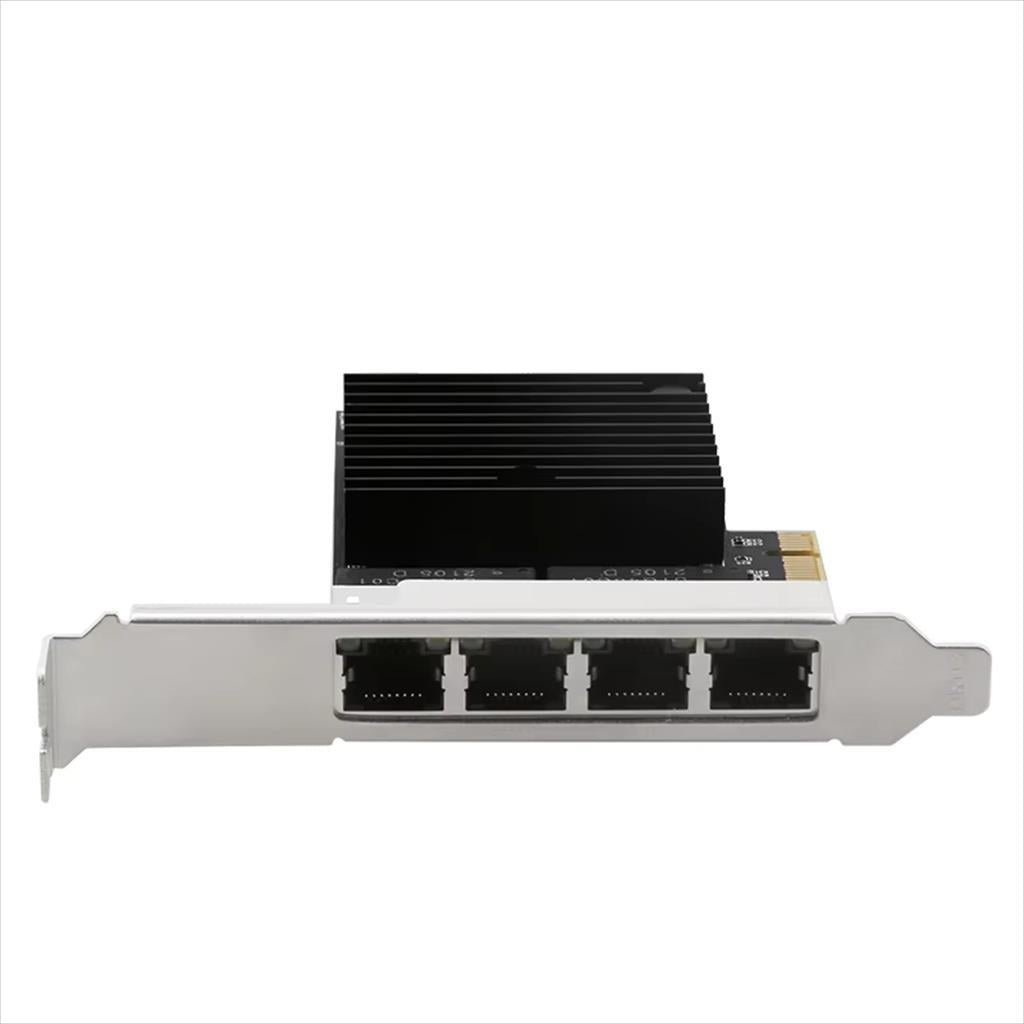

• Port Number: 4 x RJ45
• Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
• Data Rate: 10/100/1000Mbps
• Interface: PCI Express 1x Slot
• Bus Width: x1 lane PCI Express, operable in x1, x4, x8, and x16 slots
• Power Consumption: 1Gbps – 5.4W
• Special Notes / Requirements:
  • System and Cable Requirements: PCI Express-enabled computer with an available PCI Express x1 slot Gen 1.0 or higher (x4, x8, x16)
• OS Compatibility:
  • Windows® 7, 8.x, 10, 11
  • Windows Server® 2008 R2, 2012, 2016, 2019
  • Linux 2.6.x to 5.x
• LED Indicators:
  • 4 – Act LED (Orange)
  • 4 – Link (Green)
• Environment:
  • Operating Humidity: 20~80% RH
  • Operating Temperature: 5°C to 50°C (41°F to 122°F)
  • Storage Temperature: -25°C to 70°C (-13°F to 158°F)
