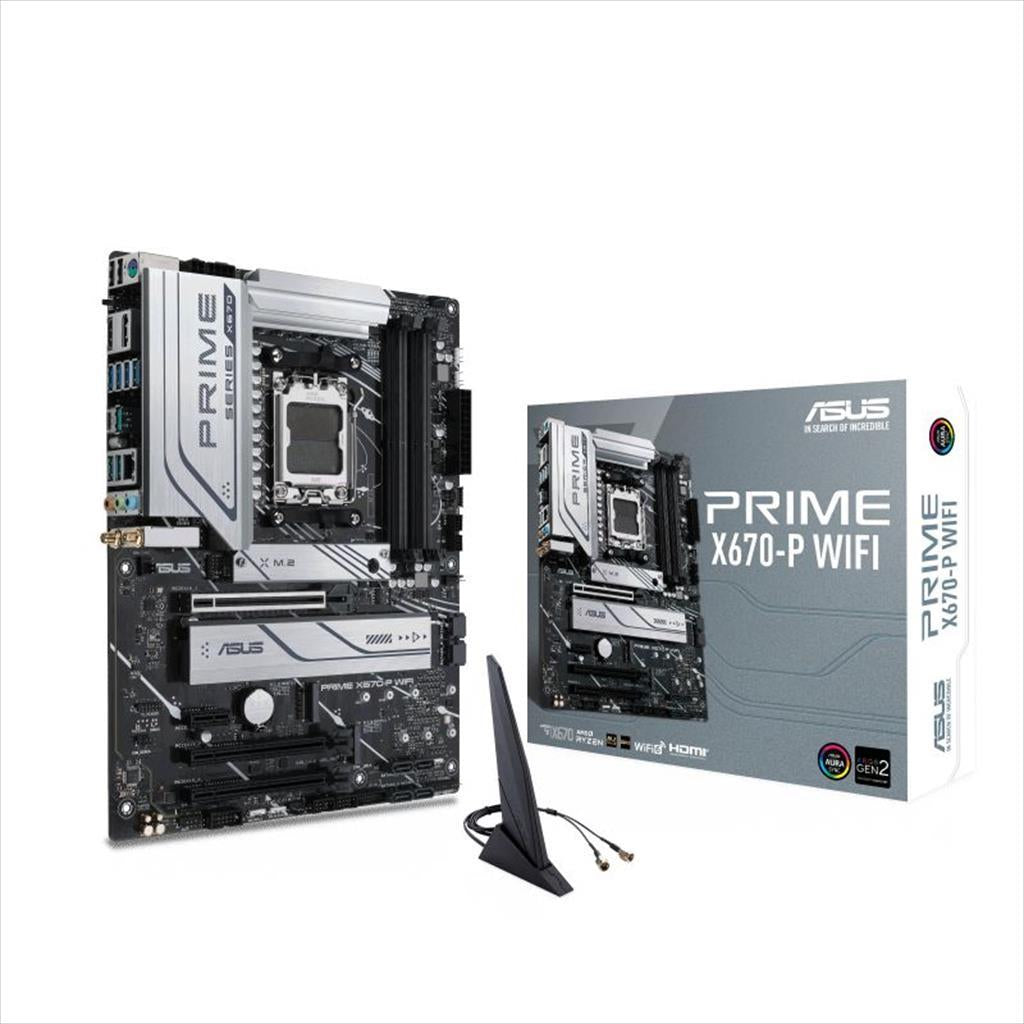

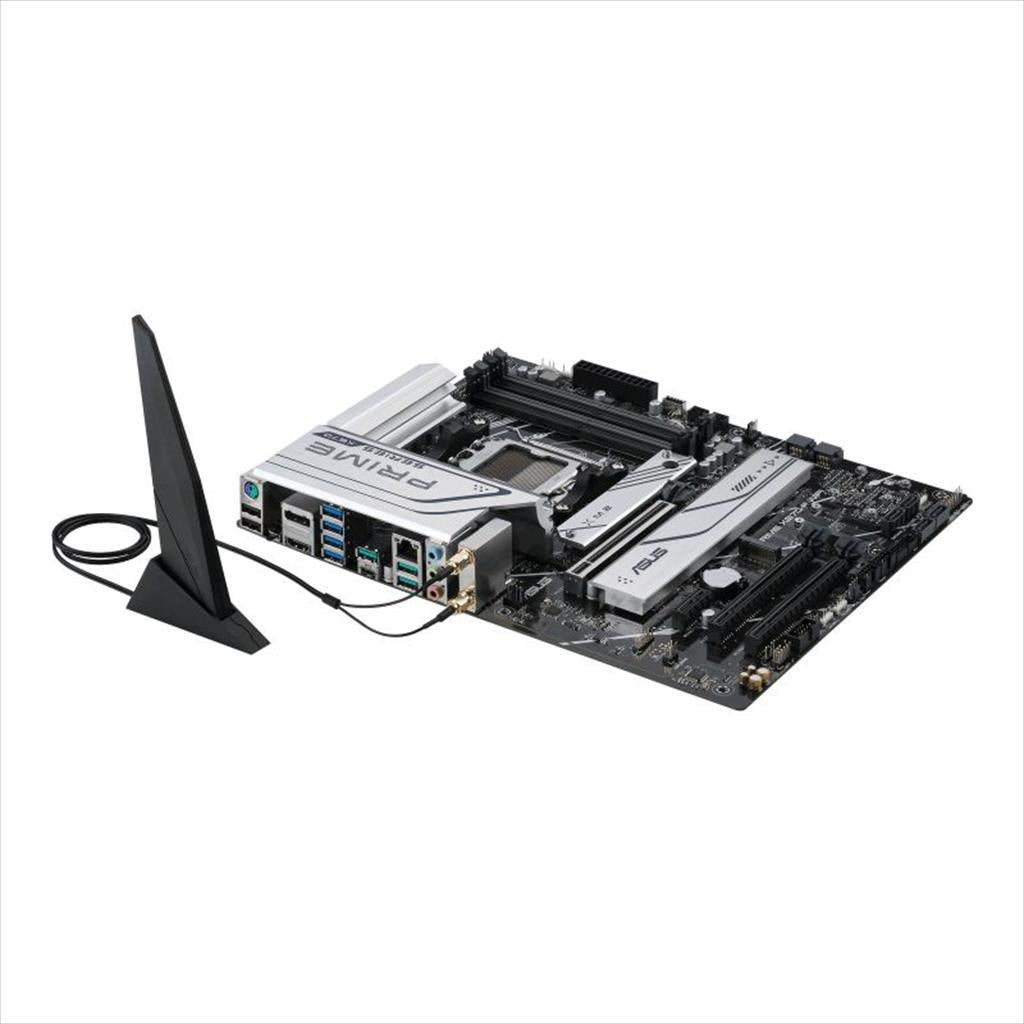

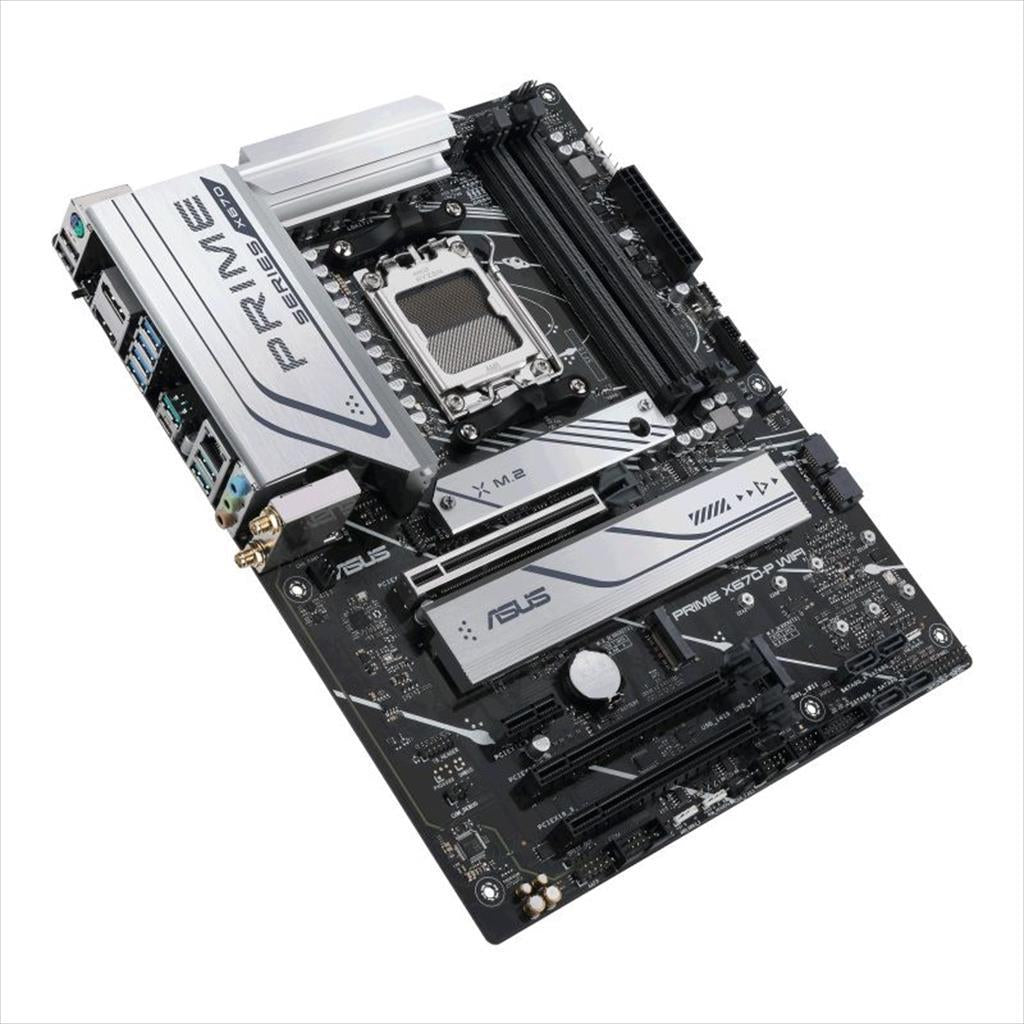

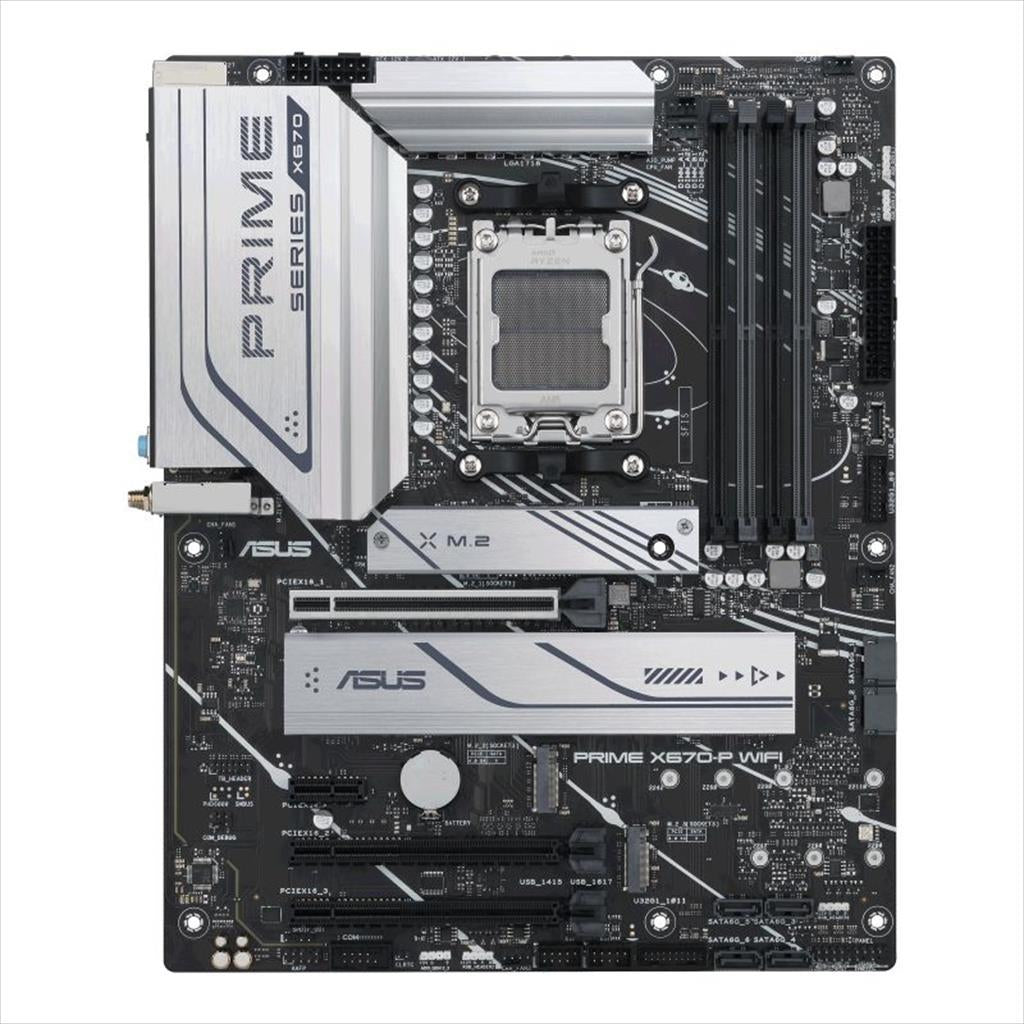

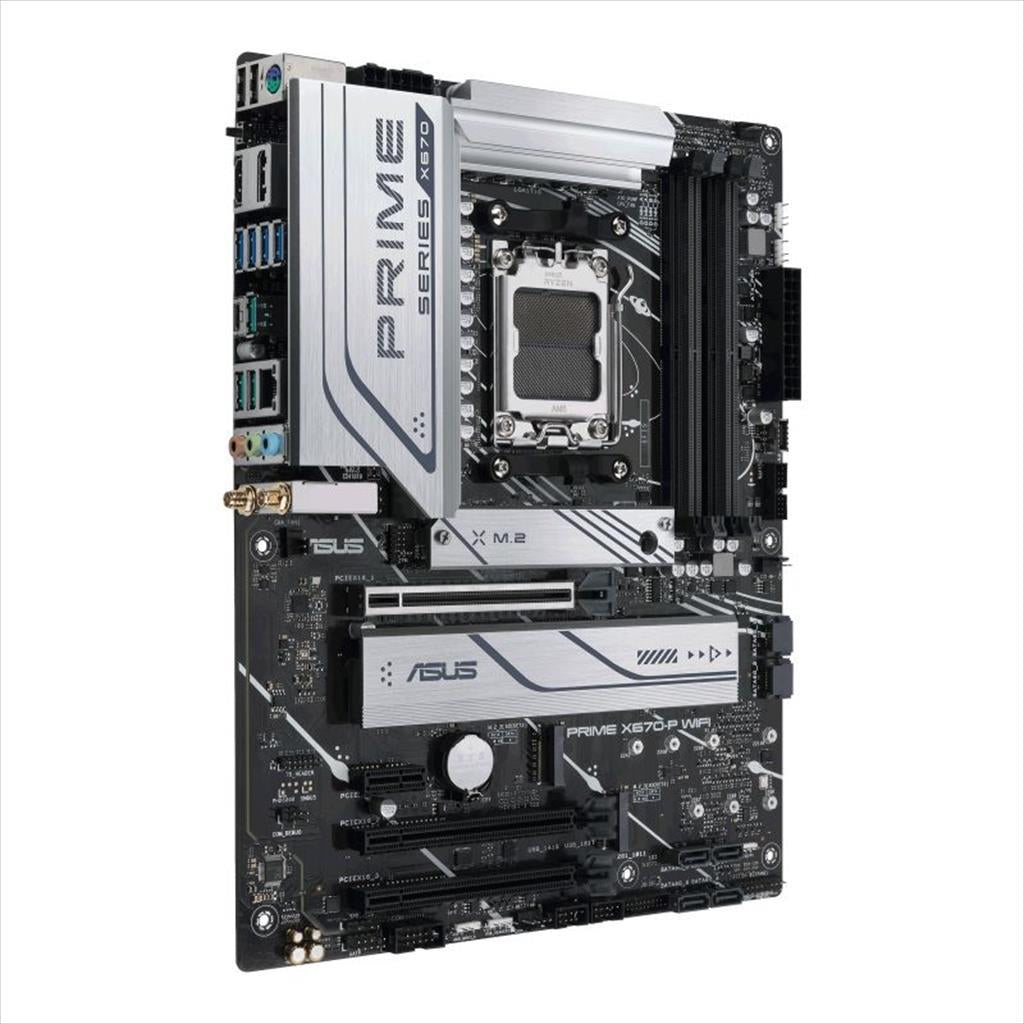

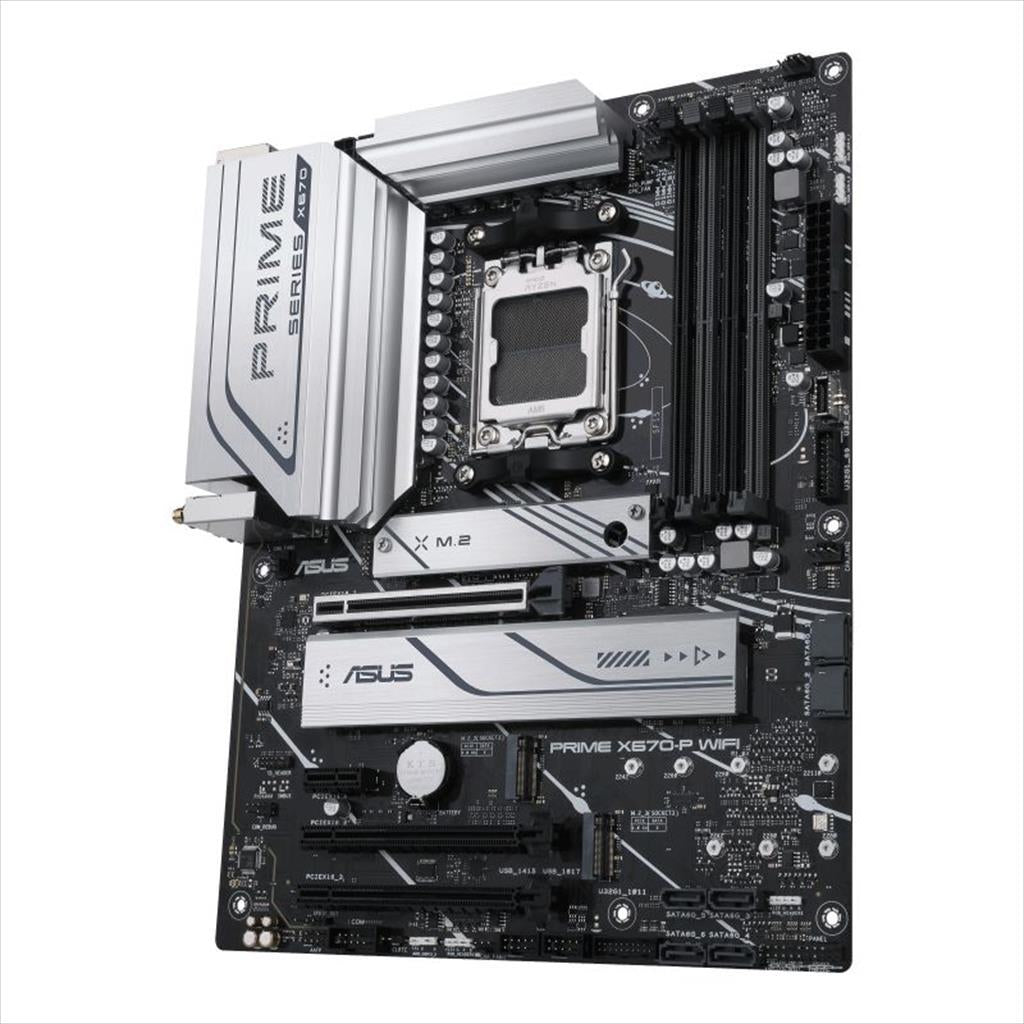

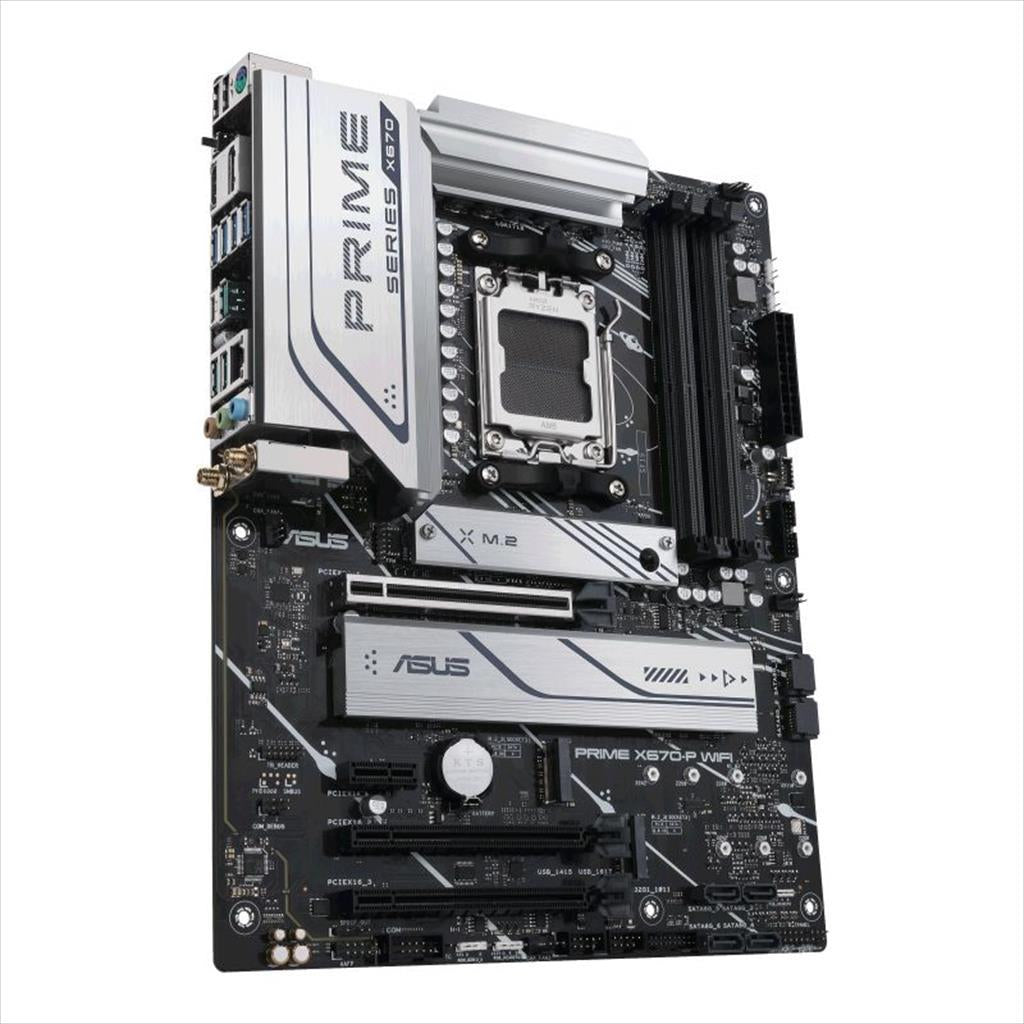

Model name: ASUS X670-P PRIME WIFI

Specification :

• CPU: AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
• Chipset: AMD X670
• Memory:
  • 4 × DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800, ECC & Non-ECC, Un-buffered
  • Dual Channel Memory Architecture
  • Supports AMD EXPO (Extended Profiles for Overclocking)
  • OptiMem II
• Graphics:
  • 1 × DisplayPort (max 8K@60Hz, DisplayPort 1.4)
  • 1 × HDMI® port (max 4K@60Hz, HDMI® 2.1)
• Expansion Slots:
  • CPU: 1 × PCIe 4.0 x16 (x16 mode)
  • Chipset: 2 × PCIe 4.0 x16 (x4 mode)
  • 1 × PCIe 3.0 x1 (shares bandwidth with SATA6G_3/4 ports)
• Storage:
  • 3 × M.2 slots (Key M)
  • 6 × SATA 6Gb/s ports
  • RAID support via AMD RAIDXpert2 (NVMe RAID 0/1/10, SATA RAID 0/1/10)
  • M.2 slot details:
    • M.2_1: PCIe 5.0 x4 (2242/2260/2280)
    • M.2_2: PCIe 4.0 x4 (2242/2260/2280/22110)
    • M.2_3: PCIe 4.0 x4 (2242/2260/2280)
• Ethernet: 1 × Realtek 2.5Gb Ethernet
• Wireless & Bluetooth:
  • Wi-Fi 6, 2x2 (802.11 a/b/g/n/ac/ax), 2.4/5 GHz
  • Bluetooth v5.2
• USB Ports:
  • Rear (10): 1 × USB 3.2 Gen 2x2 Type-C, 3 × USB 3.2 Gen 2 Type-A, 4 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0 Type-A
  • Front (9): 1 × USB 3.2 Gen 1 Type-C, 2 × USB 3.2 Gen 1 headers (support 4 ports), 2 × USB 2.0 headers (support 4 ports)
• Audio:
  • Realtek 7.1 Surround Sound HD Audio CODEC
  • Features: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-bit/192 kHz playback
  • Audio Shielding, Premium capacitors, Dedicated PCB layers

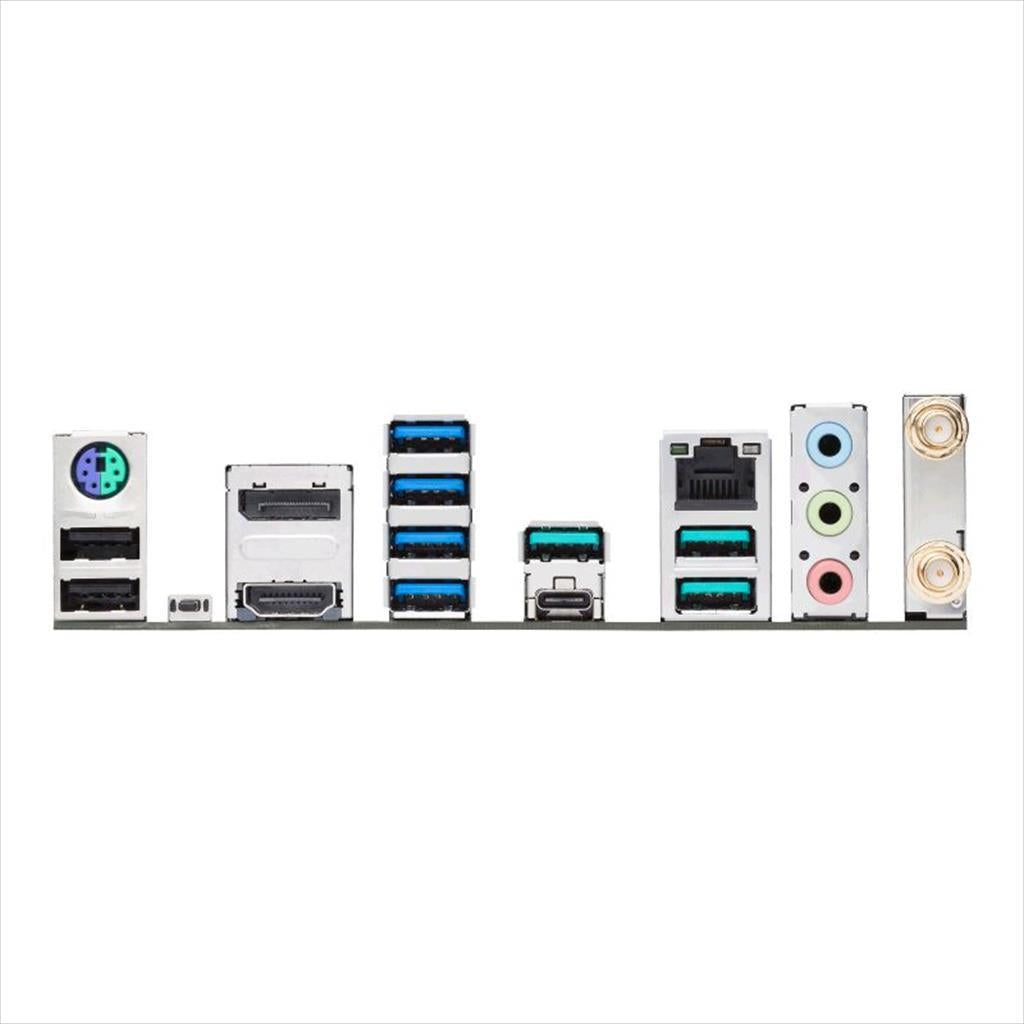

• Back Panel I/O:
  • 1 × USB 3.2 Gen 2x2 Type-C, 3 × USB 3.2 Gen 2 Type-A, 4 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0 Type-A
  • 1 × DisplayPort, 1 × HDMI® port
  • 1 × Wi-Fi module, 1 × Realtek 2.5Gb Ethernet
  • 3 × Audio jacks, 1 × BIOS FlashBack™ button, 1 × PS/2 Keyboard/Mouse combo port
• Internal I/O Connectors:
  • Fan & Cooling: 1 × 4-pin CPU Fan, 1 × CPU OPT Fan, 1 × AIO Pump, 3 × Chassis Fan headers
  • Power: 1 × 24-pin Main Power, 1 × 8-pin +12V, 1 × 4-pin +12V
  • Storage: 3 × M.2 slots, 6 × SATA 6Gb/s ports
  • USB: 1 × USB 3.2 Gen 1 Type-C, 2 × USB 3.2 Gen 1 headers (4 ports), 2 × USB 2.0 headers (4 ports)
  • Miscellaneous: 3 × Addressable Gen 2 headers, 2 × Aura RGB headers, 1 × Clear CMOS, 1 × COM, 1 × Front Panel Audio, 1 × S/PDIF Out, 1 × SPI TPM, 1 × 20-5 pin System Panel, 1 × Thunderbolt™ (USB4®) header
• Special Features:
  • ASUS 5X PROTECTION III: DIGI+ VRM, ESD Guards, LANGuard, Overvoltage Protection, Safeslot Core+, Stainless-Steel Back I/O
  • ASUS Q-Design: M.2 Q-Latch, Q-DIMM, Q-LED Core, Q-Slot
  • ASUS Thermal Solution: M.2 heatsink, VRM heatsink design
  • ASUS EZ DIY: BIOS FlashBack™ button & LED, ProCool
  • Aura Sync: Aura RGB headers, Addressable Gen 2 headers
• Software Features:
  • Armoury Crate: Aura Creator, Aura Sync, Fan Xpert 4 with AI Cooling II, Power Saving
  • AI Suite 3: TurboV EVO, DIGI+ VRM, PC Cleaner
  • ASUS CPU-Z, MyASUS, Norton Antivirus (Trial), WinRAR
• UEFI BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, ASUS CrashFree BIOS 3, ASUS EZ Flash 3
• Manageability: WOL by PME, PXE
• Accessories: 2 × SATA 6Gb/s cables, Wi-Fi antennas, I/O Shield, Rubber & Screw packages for M.2 SSD, User guide
• Operating System: Windows® 11, Windows® 10 64-bit
